* High Current Capability: IC = 17A
* High Power Dissipation : 130watts
* High Frequency : 30MHz.
* High Voltage : VCEO=250V
* Wide S.O.A for reliable operation.
* Excellent Gain Linearity for low THD.
* Complement to 2SA1962/FJA4213.
2SC5242
Fairchild Semiconductor
421.14 KB
Npn epitaxial silicon transistor.

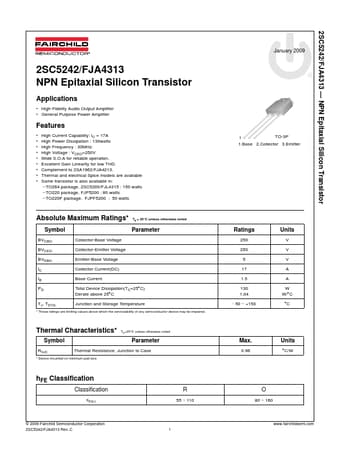

2SC5242/FJA4313
NPN Epitaxial Silicon Transistor
Applications
* High-Fidelity Audio Output Amplifier
* General Purpose Power Amplifier.
