4N32, 4N30, (4N30 - 4N3) General Purpose 6-Pin Photodarlington Optocoupler

4N29, 4N30, 4N31, 4N32, 4N33 General Purpose 6-Pin Photodarlington Optocoupler April 2007 4N29, 4N30, 4N31, 4N32, 4N33 General Purpose 6-Pin Photoda.
The 4N29, 4N30, 4N31, 4N32, 4N33 have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.

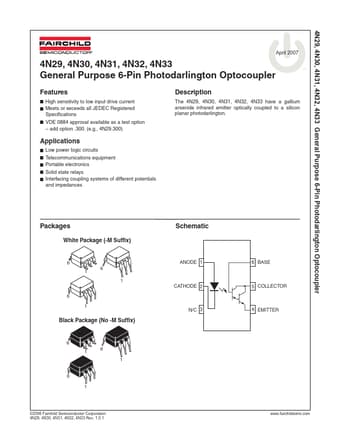

datasheet Preview Page 1 from Datasheet4u.com

4N30_FairchildSemiconductor.pdf

4N32 Datasheet Preview — This datasheet PDF includes multiple part numbers: 4N32, 4N30. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

4N32, 4N30

Manufacturer:

Fairchild Semiconductor

File Size:

247.89 KB

Description:

(4N30 - 4N3) General Purpose 6-Pin Photodarlington Optocoupler

Note:

This datasheet PDF includes multiple part numbers: 4N32, 4N30.
Please refer to the document for exact specifications by model.

Features

* High sensitivity to low input drive current

Applications

* Low power logic circuits
* Telecommunications equipment
* Portable electronics
* Solid state relays
* Interfacing coupling systems of different potentials and impedances www. DataSheet4U. com Packages White Package (-M Suffix) Schematic 6 1 6 1 ANODE 1 6 BASE CATHODE 2 6
