FAN5071 - High Performance Programmable Synchronous DC-DC Controller

Fairchild Semiconductor

The FAN5071 by Fairchild Semiconductor is a High Performance Programmable Synchronous DC-DC Controller. Below is the official datasheet preview.

📥 Download Datasheet

FAN5071 High Performance Programmable Synchronous DC-DC Controller by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FAN5071** High Performance Programmable Synchronous DC-DC Controller datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FAN5071
Manufacturer	Fairchild Semiconductor
File Size	424.93 KB
Description	High Performance Programmable Synchronous DC-DC Controller
Datasheet	FAN5071_FairchildSemiconductor.pdf

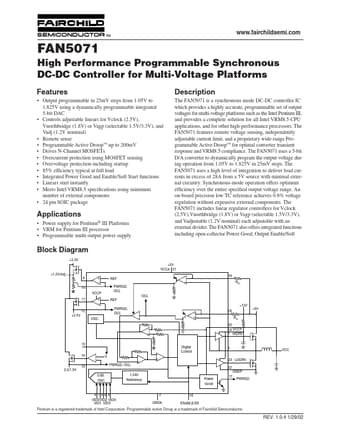

Additional preview pages of the FAN5071 datasheet.

FAN5071 Product details

Description

The FAN5071 is a synchronous mode DC-DC controller IC which provides a highly accurate, programmable set of output voltages for multi-voltage platforms such as the Intel Pentium III, and provides a complete solution for all Intel VRM8.5 CPU applications, and for other high-performance processors.

Features

Output programmable in 25mV steps from 1.05V to 1.825V using a dynamically programmable integrated 5-bit DAC.
Controls adjustable linears for Vclock (2.5V), Vnorthbridge (1.8V) or Vagp (selectable 1.5V/3.3V), and Vadj (1.2V nominal).
Remote sense.
Programmable Active Droop™ up to 200mV.
Drives N-Channel MOSFETs.
Overcurrent protection using MOSFET sensing.
Overvoltage protection including startup.
85% efﬁciency typical at f.
