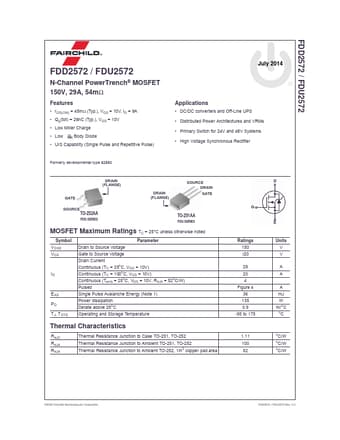

FDD2572 Datasheet, Mosfet, Fairchild Semiconductor

FDD2572 Features

• Mosfet
• rDS(ON) = 45mΩ (Typ.), VGS = 10V, ID = 9A
• Qg(tot) = 26nC (Typ.), VGS = 10V
• Low Miller Charge
• Low QRR Body Diode
• UIS Capability (Single

PDF File Details

Part number:

FDD2572

Manufacturer:

Fairchild Semiconductor

File Size:

390.76kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

FDD2572 Application

• Applications
• DC/DC converters and Off-Line UPS
• Distributed Power Architectures and VRMs
• Primary Switch for 24V and 48V
