FDD2582 - N-Channel MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

FDD2582 N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – FDD2582

Datasheet Details

Part number	FDD2582
Manufacturer	ON Semiconductor
File Size	318.65 KB
Description	N-Channel MOSFET
Datasheet	FDD2582 Datasheet

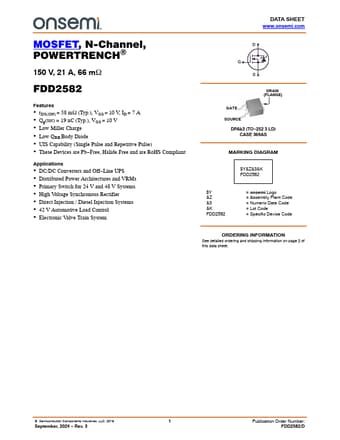

Additional preview pages of the FDD2582 datasheet.

Product details

Features

rDS(ON) = 58 mW (Typ. ), VGS = 10 V, ID = 7 A.
Qg(tot) = 19 nC (Typ. ), VGS = 10 V.
Low Miller Charge.
Low QRR Body Diode.
UIS Capability (Single Pulse and Repetitive Pulse).
These Devices are Pb.
Free, Halide Free and are RoHS Compliant.
