FDD18N20LZ Datasheet, Mosfet, ON Semiconductor

FDD18N20LZ Features

  • Mosfet
  • RDS(on) = 125 mW (Typ.) @ VGS = 10 V, ID = 8 A
  • Low Gate Charge (Typ. 30 nC)
  • Low CRSS (Typ. 25 pF)
  • 100% Avalanche Tested
  • Improved dv/dt

PDF File Details

Part number:

FDD18N20LZ

Manufacturer:

ON Semiconductor ↗

File Size:

456.52kb

Download:

📄 Datasheet

Description:

N-channel mosfet. UniFET MOSFET is ON Semiconductor’s high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to

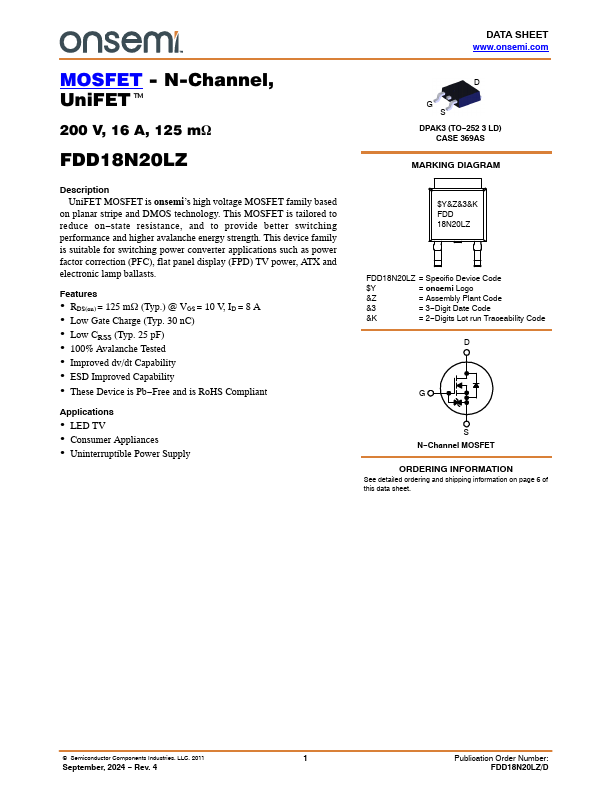

Datasheet Preview: FDD18N20LZ 📥 Download PDF (456.52kb)

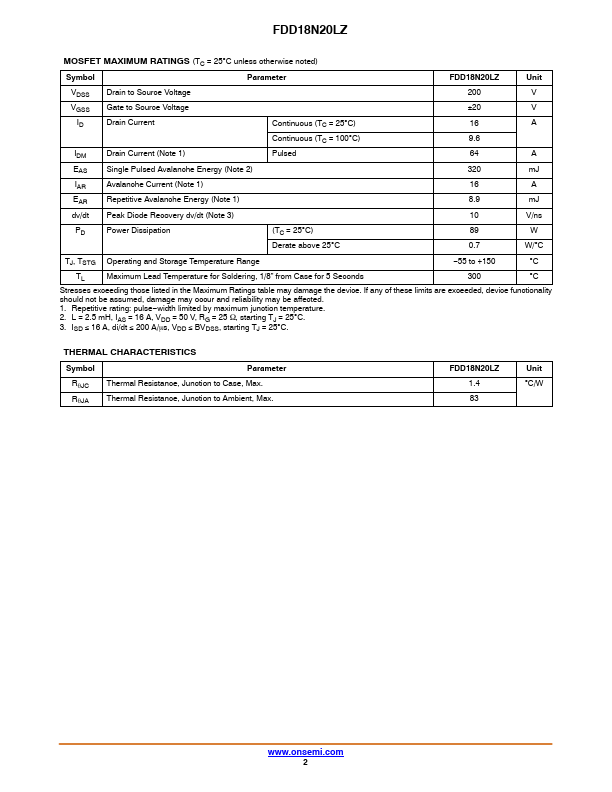

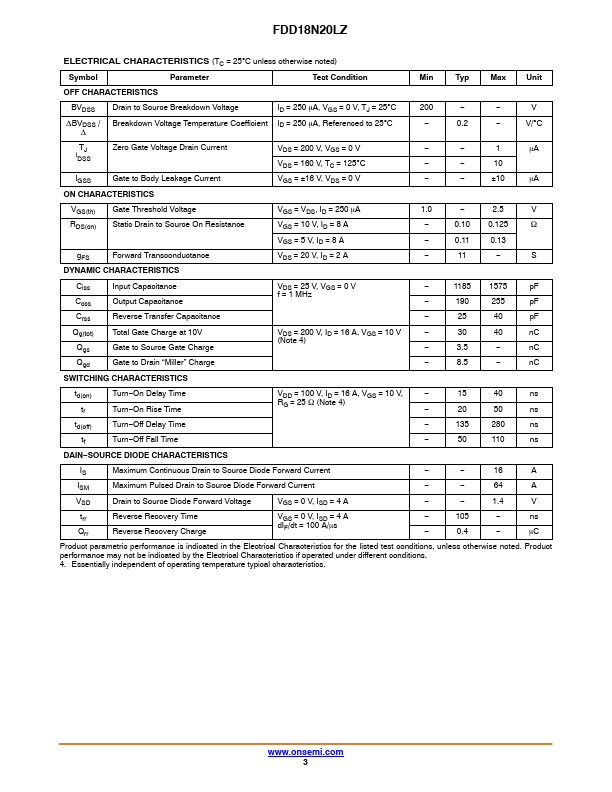

Page 2 of FDD18N20LZ Page 3 of FDD18N20LZ

FDD18N20LZ Application

  • Applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts. Features
  • RDS(on)
