FDZ202P, P-Channel 2.5V Specified PowerTrenchTM BGA MOSFET

FDZ202P November 1999 ADVANCE INFORMATION FDZ202P P-Channel 2.5V Specified PowerTrenchTM BGA MOSFET General .
Combining Fairchild’s advanced 2.

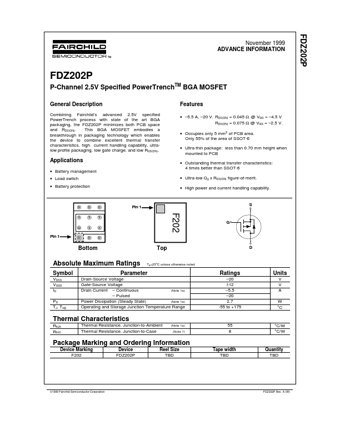

datasheet Preview Page 1 from Datasheet4u.com

FDZ202P_FairchildSemiconductor.pdf

FDZ202P Datasheet Preview — Preview of FDZ202P PDF

Datasheet Details

Part number:

FDZ202P

Manufacturer:

Fairchild Semiconductor

File Size:

35.46 KB

Description:

P-Channel 2.5V Specified PowerTrenchTM BGA MOSFET

Features

* =
* 5.5 A,
* 20 V. RDS(ON) = 0.045 Ω=@ VGS =
* 4.5 V RDS(ON) = 0.075 Ω @ VGS =
* 2.5 V.
* = Occupies only 5 mm2 of PCB area. Only 55% of the area of SSOT-6
* = Ultra-thin package: less than 0.70 mm height when mounted to PCB
* = Outstanding t

Applications

* = Battery management
* = Load switch
* = Battery protection D S G D S S D D S S D Pin 1 S F202 G Pin 1 D Bottom Top TA=25oC unless otherwise noted D Absolute Maximum Ratings Symbol VDSS VGSS ID PD TJ, Tstg Parameter Drain-Source Voltage Gate-Source Voltage Drain
