FDZ2552P Datasheet, Mosfet, Fairchild Semiconductor

FDZ2552P Features

• Mosfet
• =
    –6 A,
    –20 V. RDS(ON) = 0.045 Ω @ VGS =
    –4.5 V RDS(ON) = 0.075 Ω @ VGS =
    –2.5 V.
• = Occupies only 0.10

PDF File Details

Part number:

FDZ2552P

Manufacturer:

Fairchild Semiconductor

File Size:

52.12kb

Download:

📄 Datasheet

Description:

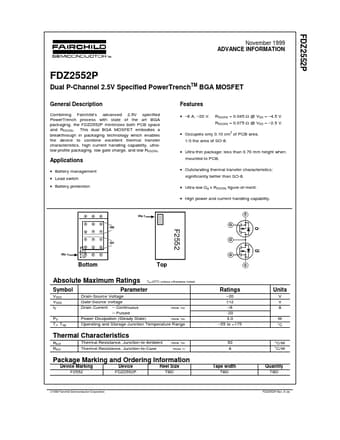

Dual p-channel 2.5v specified powertrenchtm bga mosfet. Combining Fairchild’s advanced 2.5V specified PowerTrench process with state of the art BGA packaging, the FDZ2552P minimizes both PC

FDZ2552P Application

• Applications
• = Battery management
• = Load switch
• = Battery protection D D S S S D S Pin 1 S G S G S G Q2 S S Q1 D
