FGA25N120AND Datasheet, Igbt, Fairchild Semiconductor

FGA25N120AND Features

  • Igbt
  • High speed switching Low saturation voltage : VCE(sat) = 2.5 V @ IC = 25A High input impedance CO-PAK, IGBT with FRD : trr = 235ns (typ.) Applic

PDF File Details

Part number:

FGA25N120AND

Manufacturer:

Fairchild Semiconductor

File Size:

567.06kb

Download:

📄 Datasheet

Description:

Igbt. Employing NPT technology, Fairchild’s AND series of IGBTs provides low conduction and switching losses. The AND series offers an solu

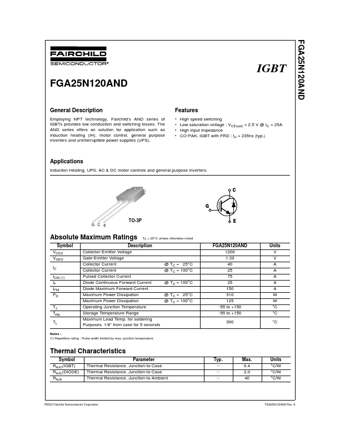

Datasheet Preview: FGA25N120AND 📥 Download PDF (567.06kb)
Page 2 of FGA25N120AND Page 3 of FGA25N120AND

FGA25N120AND Application

  • Applications Induction Heating, UPS, AC & DC motor controls and general purpose inverters. C G TO-3P G C E E Absolute Maximum Ratings Symbol VC
