FGA25N120ANTD

NPT Trench IGBT

FGA25N120ANTD Features

* NPT Trench Technology, Positive Temperature Coefficient

* Low Saturation Voltage: VCE(sat), typ = 2.0 V @ IC = 25 A and TC = 25C

* Low Switching Loss: Eoff, typ = 0.96 mJ @ IC = 25 A and TC = 25C

* Extremely Enhanced Avalanche Capability Applications

* Ind

FGA25N120ANTD General Description

Using Fairchild's proprietary trench design and advanced NPT technology, the 1200V NPT IGBT offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation. This device is well suited for the resonant or soft switching application such as induction heatin.

FGA25N120ANTD Datasheet (301.81 KB)

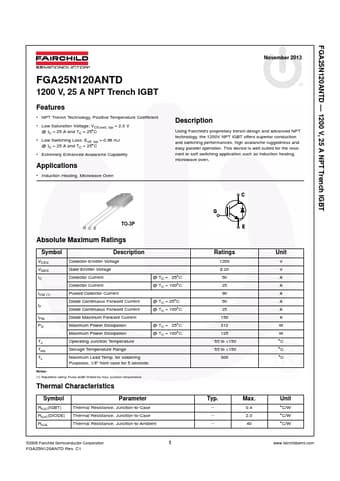

Preview of FGA25N120ANTD PDF

Datasheet Details

Part number:

FGA25N120ANTD

Manufacturer:

Fairchild Semiconductor

File Size:

301.81 KB

Description:

Npt trench igbt.
