FQD13N06L Datasheet, Mosfet, Fairchild Semiconductor

FQD13N06L Features

• Mosfet
• 11A, 60V, RDS(on) = 0.115Ω @VGS = 10 V Low gate charge ( typical 4.8 nC) Low Crss ( typical 17 pF) Fast switching 1

PDF File Details

Part number:

FQD13N06L

Manufacturer:

Fairchild Semiconductor

File Size:

1.50MB

Download:

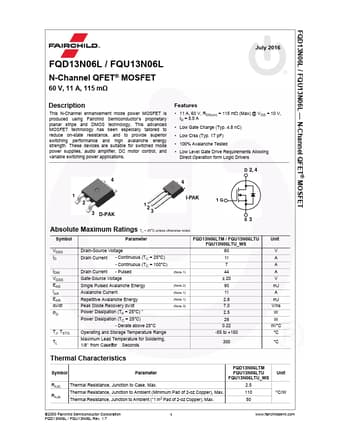

📄 Datasheet

Description:

N-channel qfet mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS techn

FQD13N06L Application

• Applications such as automotive, DC/ DC converters, and high efficiency switching for power management in portable and battery operated products. T
