FQD16N25C Datasheet, Mosfet, ON Semiconductor

FQD16N25C Features

  • Mosfet
  • 16 A, 250 V RDS(on) = 270 mW (Max.) @ VGS = 10 V, ID = 8 A
  • Low Gate Charge (Typ. 41 nC)
  • Low Crss (Typ. 68 pF)
  • 100% Avalanche Tested
  • Thi

PDF File Details

Part number:

FQD16N25C

Manufacturer:

ON Semiconductor ↗

File Size:

320.05kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N

  • Channel Enhancement Mode Power MOSFET is produced using onsemi’s proprietary planar stripe and DMOS technology. This a

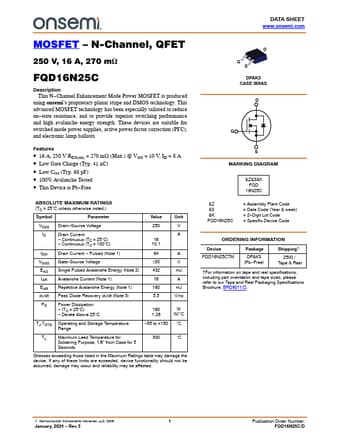

  • Datasheet Preview: FQD16N25C 📥 Download PDF (320.05kb)
    Page 2 of FQD16N25C Page 3 of FQD16N25C
