FQD11P06 Datasheet, Mosfet, Fairchild Semiconductor

FQD11P06 Features

  • Mosfet
  • -9.4 A, -60 V, RDS(on) = 185 mΩ (Max.) @ VGS = -10 V, ID = -4.7 A
  • Low Gate Charge (Typ. 13 nC)
  • Low Crss (Typ. 45 pF)
  • 100% Avalanche Tested G S

PDF File Details

Part number:

FQD11P06

Manufacturer:

Fairchild Semiconductor

File Size:

1.22MB

Download:

📄 Datasheet

Description:

60v p-channel mosfet. This P-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technolog

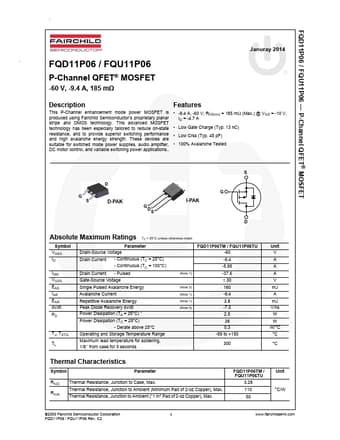

Datasheet Preview: FQD11P06 📥 Download PDF (1.22MB)
Page 2 of FQD11P06 Page 3 of FQD11P06

FQD11P06 Application

  • Applications . Features
  • -9.4 A, -60 V, RDS(on) = 185 mΩ (Max.) @ VGS = -10 V, ID = -4.7 A
  • Low Gate Charge (Typ. 13 nC)
