FQD12N20LTM_F085 Datasheet, Mosfet, Fairchild Semiconductor

FQD12N20LTM_F085 Features

  • Mosfet
  • 9.0A, 200V, RDS(on) = 0.28Ω @VGS = 10 V
  • Low gate charge ( typical 16 nC)
  • Low Crss ( typical 17 pF)
  • Fast switching
  • 100% avalanche tested

PDF File Details

Part number:

FQD12N20LTM_F085

Manufacturer:

Fairchild Semiconductor

File Size:

639.88kb

Download:

📄 Datasheet

Description:

200v logic level n-channel mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS techn

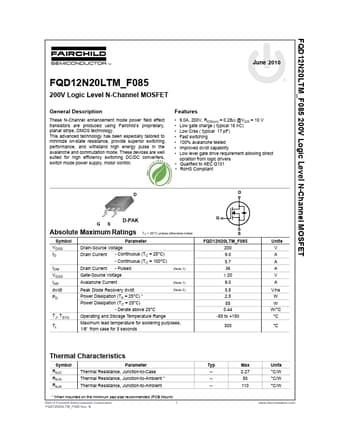

Datasheet Preview: FQD12N20LTM_F085 📥 Download PDF (639.88kb)
Page 2 of FQD12N20LTM_F085 Page 3 of FQD12N20LTM_F085
