FQD16N25C Datasheet, Mosfet, Fairchild Semiconductor

FQD16N25C Features

  • Mosfet
  • 16 A, 250 V, RDS(on) = 270 mΩ (Max.) @ VGS = 10 V, ID = 8 A
  • Low Gate Charge (Typ. 41 nC)
  • Low Crss (Typ. 68 pF)
  • 100% Avalanche Tested November 20

PDF File Details

Part number:

FQD16N25C

Manufacturer:

Fairchild Semiconductor

File Size:

506.00kb

Download:

📄 Datasheet

Description:

Mosfet. This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technolog

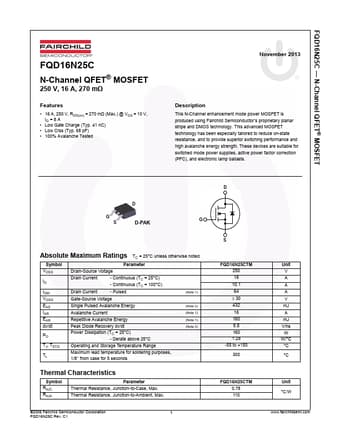

Datasheet Preview: FQD16N25C 📥 Download PDF (506.00kb)
Page 2 of FQD16N25C Page 3 of FQD16N25C
