FQD1N50B - 500V N-Channel MOSFET

Product Overview

Fairchild Semiconductor

Part number	FQD1N50B
Manufacturer	Fairchild Semiconductor
File Size	606.69 KB
Description	500V N-Channel MOSFET
Datasheet	FQD1N50B Datasheet

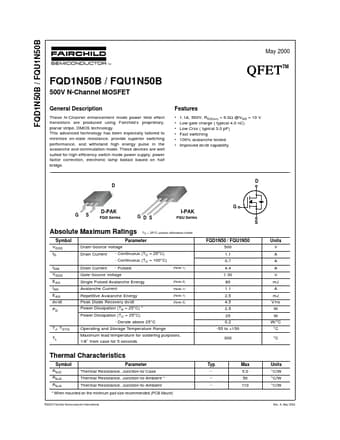

Additional preview pages of the FQD1N50B datasheet.

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology.

1.1A, 500V, RDS(on) = 9.0Ω @VGS = 10 V Low gate charge ( typical 4.0 nC) Low Crss ( typical 3.0 pF) Fast switching 100% avalanche tested Improved dv/dt capability D D ! " G! G S ! " " " D-PAK FQD Series I-PAK G D S FQU Series ! S Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TC = 25°C unless otherwise noted Parameter Drain-Source Voltage - Continuous (TC = 25°C) Drain Current - Continuous (TC = 100°C) D.
