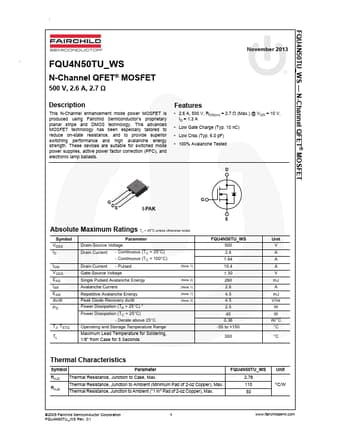

FQU4N50TU_WS Datasheet, Mosfet, Fairchild Semiconductor

FQU4N50TU_WS Features

• Mosfet
• 2.6 A, 500 V, RDS(on) = 2.7 Ω (Max.) @ VGS = 10 V, ID = 1.3 A
• Low Gate Charge (Typ. 10 nC)
• Low Crss (Typ. 6.0 pF)
• 100% Avalanche Tested D GDS

PDF File Details

Part number:

FQU4N50TU_WS

Manufacturer:

Fairchild Semiconductor

File Size:

908.05kb

Download:

📄 Datasheet

Description:

N-channel qfet mosfet. This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technolog
