HGTG12N60B3D - N-Channel IGBT

Features

  • of MOSFETs and bipolar transistors. These devices have the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25oC and 150oC. The IGBT used is the development type TA49171. The diode used in anti-parallel with the IGBT is the development type TA49188. The IGBT is ideal for many high voltage switching.

📥 Download Datasheet

Datasheet preview – HGTG12N60B3D

📁 Similar Datasheet

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

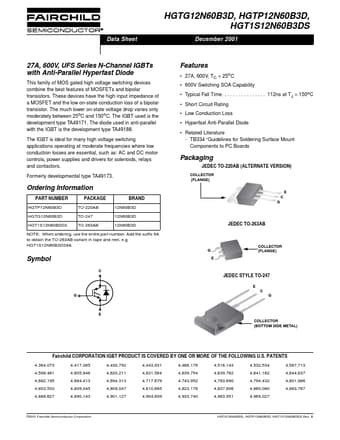

HGTG12N60B3D, HGTP12N60B3D, HGT1S12N60B3DS Data Sheet December 2001 27A, 600V, UFS Series N-Channel IGBTs with Anti-Parallel Hyperfast Diode This family of MOS gated high voltage switching devices combine the best features of MOSFETs and bipolar transistors. These devices have the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25oC and 150oC. The IGBT used is the development type TA49171. The diode used in anti-parallel with the IGBT is the development type TA49188.
