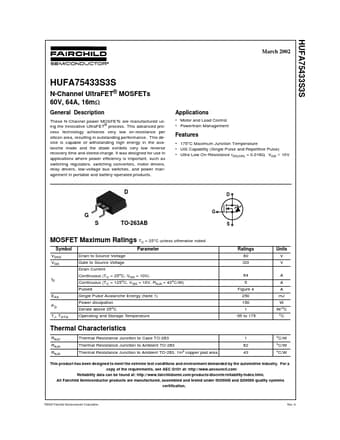

HUFA75433S3S Datasheet Preview — Preview of HUFA75433S3S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HUFA75433S3S
Manufacturer: Fairchild Semiconductor
File Size: 301.69 KB
Datasheet: HUFA75433S3S_FairchildSemiconductor.pdf
Description: N-Channel MOSFET

HUFA75433S3S Product details

Description

These N-Channel power MOSFETs are manufactured using the innovative UltraFET® process.

Features

175°C Maximum Junction Temperature.
UIS Capability (Single Pulse and Repetitive Pulse).
Ultra-Low On-Resistance rDS(ON) = 0.016Ω, VGS = 10V D D G S TO-263AB FDB Series G S MOSFET Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS VGS Parameter Drain to Source Voltage Gate to Source Voltage Drain Current ID Continuous (TC = 25oC, VGS = 10V) Continuous (TC = 125oC, VGS = 10V, RθJA = 43oC/W) Pulsed EAS PD TJ, TSTG Single Pulse Avalanche Energy (Note 1) Pow.
