KSD5070 NPN TRIPLE DIFFUSED PLANAR SILICON TRANSISTOR

www.DataSheet4U.com KSD5070 NPN TRIPLE DIFFUSED PLANAR SILICON TRANSISTOR COLOR TV HORIZONTAL OUTPUT APPLICATION (DAMPER DIODE BUILT IN) High Collector-Base Voltage (VCBO=1500V) High Switching Speed (tF. max=0.4uS) TO-3PF ABSOLUTE MIXIMUM RATING Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Collector Dissipation (TC=25°C) Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO .

KSD5070_FairchildSemiconductor.pdf

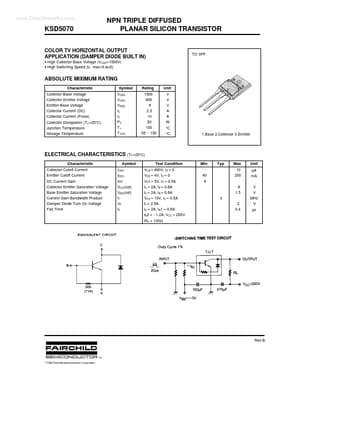

Preview of KSD5070 PDF
KSD5070 Datasheet Preview Page 2

Datasheet Details

Part number:

KSD5070

Manufacturer:

Fairchild Semiconductor

File Size:

62.05 KB

Description:

Npn triple diffused planar silicon transistor.
