KSD5072 NPN TRIPLE DIFFUSED PLANAR SILICON TRANSISTOR

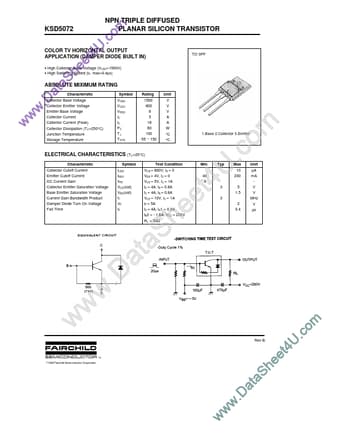

m o .c U 4 t e e h S a at .D w w w KSD5072 High Collector-Base Voltage (VCBO=1500V) High Switching Speed (tF. max=0.4µs) NPN TRIPLE DIFFUSED PLANAR SILICON TRANSISTOR COLOR TV HORIZONTAL OUTPUT APPLICATION (DAMPER DIODE BUILT IN) TO-3PF ABSOLUTE MIXIMUM RATING Characteristic Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Collector Current (Peak) Symbol Rating 1500 800 6 5 16 60 150 -55 ~ 150 Unit V V V A A W Collector Dissipati.
