KSD5075T - Silicon NPN Power Transistor

Product Overview

📥 Download Datasheet

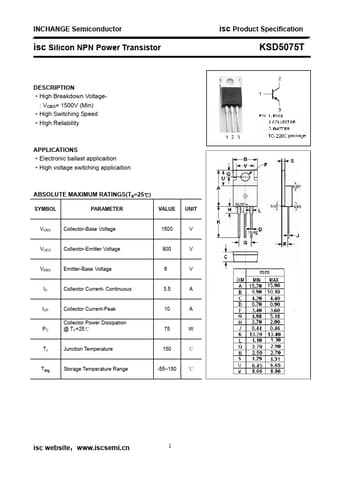

Datasheet preview – KSD5075T

Datasheet Details

Part number KSD5075T
Manufacturer Inchange Semiconductor
File Size 129.08 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet KSD5075T Datasheet
Additional preview pages of the KSD5075T datasheet.

Product details

Description

High Breakdown Voltage- : VCBO= 1500V (Min) High Switching Speed High Reliability APPLICATIONS Electronic ballast applicaition High voltage switching applicaition ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage IC Collector Current- Continuous 6V 3.5 A ICP Collector Current-Peak Collector Power Dissipation PC @ TC=25℃ TJ Junction Temperature 1
