KSD5074 Datasheet - Inchange Semiconductor

KSD5074 Silicon NPN Power Transistor

*High Breakdown Voltage- : VCBO= 1500V (Min) *High Switching Speed *High Reliability APPLICATIONS *Designed for color TV horizontal output applicaitions ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter .

KSD5074-InchangeSemiconductor.pdf

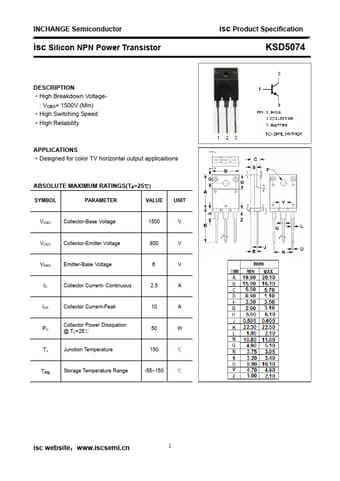

Preview of KSD5074 PDF
KSD5074 Datasheet Preview Page 2

Datasheet Details

Part number:

KSD5074

Manufacturer:

Inchange Semiconductor

File Size:

129.94 KB

Description:

Silicon npn power transistor.
