KSD5071 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

KSD5071

Manufacturer:

Inchange Semiconductor

File Size:

131.93kb

Download:

📄 Datasheet

Description:

Silicon npn power transistor.

  • High Breakdown Voltage- : VCBO= 1500V (Min)
  • High Switching Speed
  • High Reliability
  • Built-in Damper

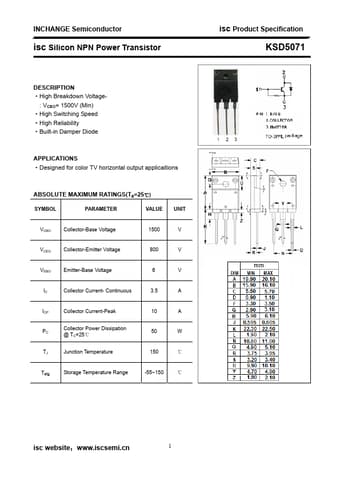

  • Datasheet Preview: KSD5071 📥 Download PDF (131.93kb)
    Page 2 of KSD5071

    KSD5071 Application

    • Applications
    • Designed for color TV horizontal output applicaitions ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO
