KSD5075 - Silicon NPN Power Transistor

KSD5075 Description

INCHANGE Semiconductor isc Silicon NPN Power Transistor isc Product Specification KSD5075 .
High Breakdown Voltage- : VCBO= 1500V (Min). High Switching Speed. High Reliability APPLICATIONS. Designed for color TV horizontal o.

KSD5075 Applications

* Designed for color TV horizontal output applicaitions ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6V IC Collector Current- Continuous 3.5 A ICP Collector Current

📥 Download Datasheet

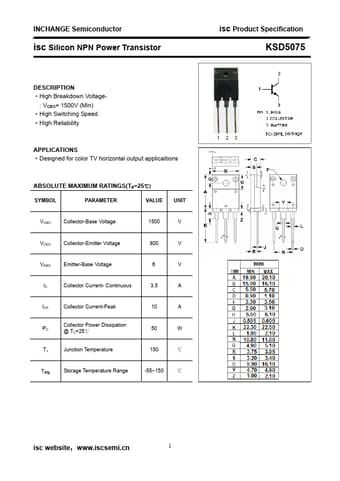

Preview of KSD5075 PDF
datasheet Preview Page 2

Datasheet Details

Part number
KSD5075
Manufacturer
Inchange Semiconductor
File Size
129.86 KB
Datasheet
KSD5075-InchangeSemiconductor.pdf
Description
Silicon NPN Power Transistor
