KSH200
KSH200
D-PAK for Surface Mount Applications
• • • • High DC Current Gain Built-in a Damper Diode at E-C Lead Formed for Surface Mount Applications (No Suffix) Straight Lead (I-PAK, “ - I “ Suffix)
1
D-PAK 1.Base
1
I-PAK 3.Emitter
2.Collector
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings TC=25°C unless otherwise noted
Symbol VCBO VCEO VEBO IB IC ICP PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Base Current Collector Current (DC) Collector Current (Pulse) Collector Dissipation (TC = 25°C) Collector Dissipation (Ta = 25°C) Junction Temperature Storage Temperature Value 40 25 8 1 5 10 12.5 1.

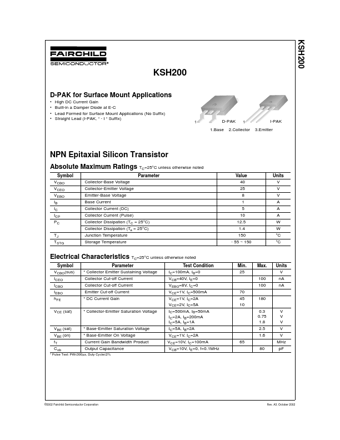

KSH200 Datasheet
