SSD2009A - Dual N-CHANNEL POWER MOSFET

Product Overview

Fairchild Semiconductor

Part number	SSD2009A
Manufacturer	Fairchild Semiconductor
File Size	183.04 KB
Description	Dual N-CHANNEL POWER MOSFET
Datasheet	SSD2009A Datasheet
Additional preview pages of the SSD2009A datasheet.

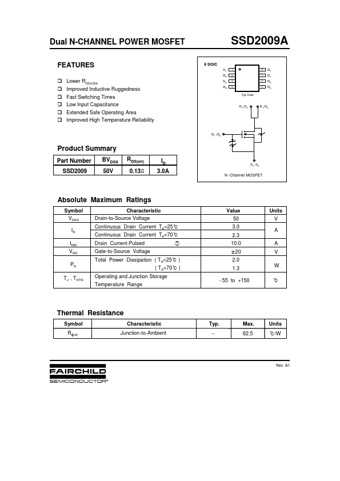

! Lower RDS(ON) ! Improved Inductive Ruggedness ! Fast Switching Times ! Low Input Capacitance ! Extended Safe Operating Area ! Improved High Temperature Reliability G1 ,G2 SSD2009A 8 SOIC S1 G1 S2 G2 1 2 3 4 8 7 6 5 D1 D1 D2 D2 Top View D1,D2 D1,D2 ▼ Product Summary Part Number SSD2009 BVDSS 50V RDS(on) 0.13Ω ID 3.0A S1 ,S2 N -Channel MOSFET Absolute Maximum Ratings Symbol VDSS ID IDM VGS PD TJ , TSTG Characteristic Drain-to-Source Voltage Continuous Drain Current TA=25℃ Continuous Dr.
