SSD2005, Dual P-Channel 30V MOSFET

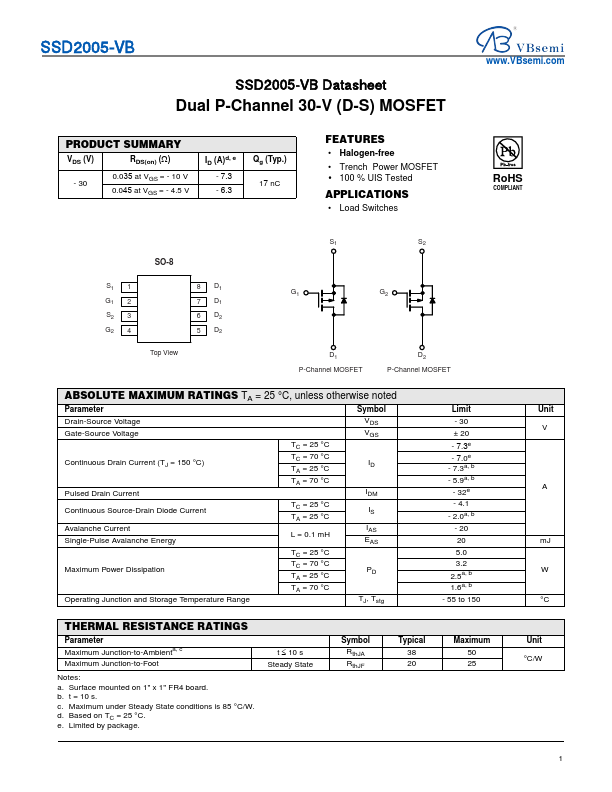

SSD2005-VB SSD2005-VB Datasheet Dual P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.035 at VGS = - 10 V 0.045 at VGS = .

datasheet Preview Page 1 from Datasheet4u.com

SSD2005-VBsemi.pdf

SSD2005 Datasheet Preview — Preview of SSD2005 PDF

Datasheet Details

Part number:

SSD2005

Manufacturer:

VBsemi

File Size:

283.36 KB

Description:

Dual P-Channel 30V MOSFET

Features

* Halogen-free
* Trench Power MOSFET

Applications

* Load Switches www. VBsemi. com RoHS COMPLIANT S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 S1 S2 G1 G2 D1 P-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage V
