SSD20N06-90D - N-Channel MOSFET

SSD20N06-90D Description

SSD20N06-90D Elektronische Bauelemente N-Ch Enhancement Mode Power MOSFET 19A, 60V, RDS(ON) 94 mΩ RoHS Compliant Product A suffix of “-C” specifies ha.
These miniature surface mount MOSFETs utilize a high cell density trench process to provide low RDS(on) and to ensure minimal power loss and heat diss.

SSD20N06-90D Features

* Low RDS(on) provides higher efficiency and extends battery life Low thermal impedance copper leadframce DPAK saves board space Fast switching speed High performance trench technology A B C D GE PRODUCT SUMMARY VDS(V) 60 PRODUCT SUMMARY RDS(on) m( 94 @VGS= 10V 109 @VGS

📥 Download Datasheet

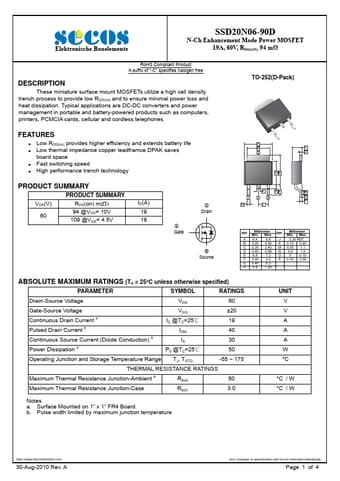

Preview of SSD20N06-90D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSD20N06-90D
Manufacturer
SeCoS
File Size
462.61 KB
Datasheet
SSD20N06-90D_SeCoS.pdf
Description
N-Channel MOSFET
