TMC22071A - Genlocking Video Digitizer

Fairchild Semiconductor

📥 Download Datasheet

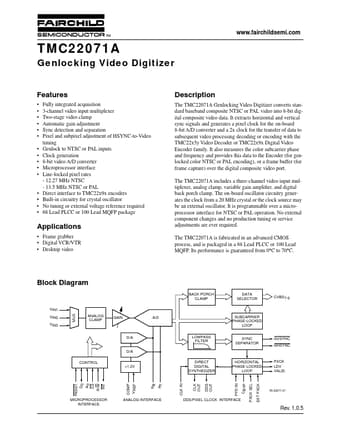

TMC22071A Datasheet Preview — Preview of TMC22071A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TMC22071A
Manufacturer: Fairchild Semiconductor
File Size: 125.47 KB
Datasheet: TMC22071A_FairchildSemiconductor.pdf
Description: Genlocking Video Digitizer

TMC22071A Product details

Description

The TMC22071A Genlocking Video Digitizer converts standard baseband composite NTSC or PAL video into 8-bit digital composite video data.

Features

Fully integrated acquisition 3-channel video input multiplexer Two-stage video clamp Automatic gain adjustment Sync detection and separation Pixel and subpixel adjustment of HSYNC-to-Video timing Genlock to NTSC or PAL inputs Clock generation 8-bit video A/D converter Microprocessor interface Line-locked pixel rates - 12.27 MHz NTSC - 13.5 MHz NTSC or PAL Direct interface to TMC22x9x enc.
