TMC2202-SA Datasheet, Drivers, TRINAMIC

TMC2202-SA Features

• Drivers 2-phase stepper motors up to 2A coil current (peak) STEP/DIR Interface with 2, 4, 8, 16 or 32 microstep pin setting Smooth Running 256 microsteps by MicroPlyer™ interpolation StealthCho

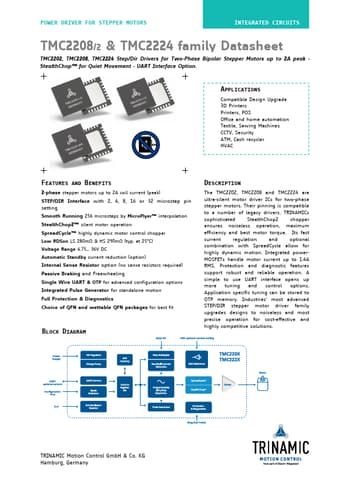

PDF File Details

Part number:

TMC2202-SA

Manufacturer:

TRINAMIC

File Size:

1.76MB

Download:

📄 Datasheet

Description:

Step/dir drivers. The TMC2202, TMC2208 and TMC2224 are ultra-silent motor driver ICs for two-phase stepper motors. Their pinning is compatible to a num

TMC2202-SA Application

• Applications Compatible Design Upgrade 3D Printers Printers, POS Office and home automation Textile, Sewing Machines CCTV, Security ATM, Cash recycl
