TMC2208-SA Datasheet - TRINAMIC

TMC2208-SA Step/Dir Drivers

The TMC2202, TMC2208 and TMC2224 are ultra-silent motor driver ICs for two-phase stepper motors. Their pinning is compatible to a number of legacy drivers. TRINAMICs sophisticated StealthChop2 chopper ensures noiseless operation, maximum efficiency and best motor torque. Its fast current regulation .

TMC2208-SA Features

* 2-phase stepper motors up to 2A coil current (peak) STEP/DIR Interface with 2, 4, 8, 16 or 32 microstep pin setting Smooth Running 256 microsteps by MicroPlyer™ interpolation StealthChop2™ silent motor operation SpreadCycle™ highly dynamic motor control chopper Low RDSon LS 280mΩ & HS 290mΩ (typ. at

TMC2208-SA Datasheet (1.76 MB)

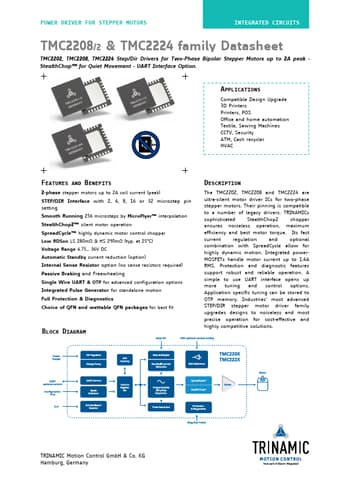

Preview of TMC2208-SA PDF
TMC2208-SA Datasheet Preview Page 2 TMC2208-SA Datasheet Preview Page 3

Datasheet Details

Part number:

TMC2208-SA

Manufacturer:

TRINAMIC

File Size:

1.76 MB

Description:

Step/dir drivers.
