KA4558 Datasheet - Fairchild

KA4558 Dual Operational Amplifier

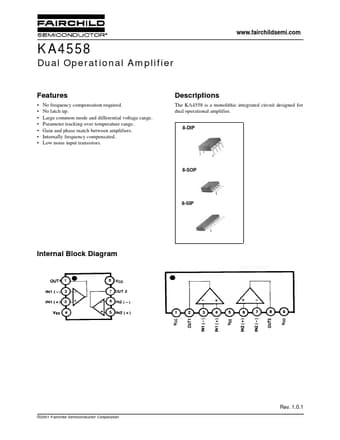

The KA4558 is a monolithic integrated circuit designed for dual operational amplifier. 8-DIP 1 8-SOP 1 9-SIP 1 Internal Block Diagram Rev. 1.0.1 ©2001 Fairchild Semiconductor Corporation KA4558 Schematic Diagram (One Section Only) Absolute Maximum Ratings Parameter Supply Voltage Differen.

KA4558 Features

* No frequency compensation required. No latch up. Large common mode and differential voltage range. Parameter tracking over temperature range. Gain and phase match between amplifiers. Internally frequency compensated. Low noise inp
