KA431

Programmable Shunt Regulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi KA431SMF2TF IC VREF SHUNT 36V 2% SOT23F-3 DigiKey 2890 1000 units
$0.12

KA431 Datasheet (213.01 KB)

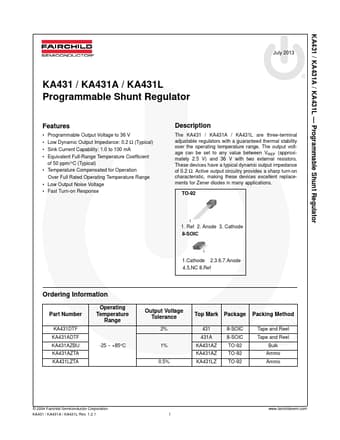

Preview of KA431 PDF

Datasheet Details

Part number:

KA431

Manufacturer:

Fairchild

File Size:

213.01 KB

Description:

Programmable shunt regulator.

KA431 Features

* Programmable Output Voltage to 36 V

* Low Dynamic Output Impedance: 0.2 Ω (Typical)

* Sink Current Capability: 1.0 to 100 mA

* Equivalent Full-Range Temperature Coefficient of 50 ppm/°C (Typical)

* Temperature Compensated for Operation Over Full Rated Operat

KA431 General Description

The KA431 / KA431A / KA431L are three-terminal adjustable regulators with a guaranteed thermal stability over the operating temperature range. The output voltage can be set to any value between VREF (approximately 2.5 V) and 36 V with two external resistors. These devices have a typical dynamic outp.
