KA4976-AL Datasheet - Coilcraft

KA4976-AL Isolation Transformers

Document 888 Isolation Transformers ForAnalogDevicesADuM347x Quad-Channel Digital Isolators Developed to work with Analog Devices ADuM347x quadchannel, digital isolators with integrated PWM controller and transformer driver Power rating: 2 Watts Designed to meet UL/CSA/IEC 60950 Basic Insulation with 1.5 mm creepage and clearance. Core material Ferrite Terminations Tin-silver over tin over nickel over phos bronze Isolation 2500 Vrms primary to secondary; 500 Vrms w.

KA4976-AL-Coilcraft.pdf

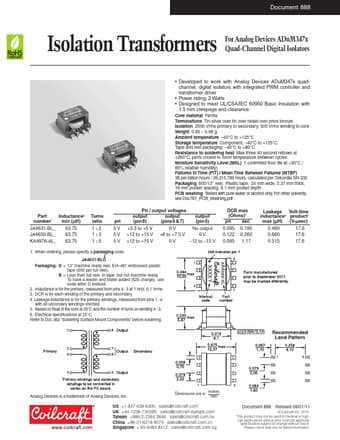

KA4976-AL Datasheet Preview — Preview of KA4976-AL PDF

Datasheet Details

Part number:

KA4976-AL

Manufacturer:

Coilcraft

File Size:

116.00 KB

Description:

Isolation transformers.
