KA431SL

Programmable Shunt Regulator

KA431SL Features

* Programmable Output Voltage to 36 V

* Low Dynamic Output Impedance 0.2 Ω (Typical)

* Sink Current Capability: 1.0 to 100 mA

* Equivalent Full-Range Temperature Coefficient of 50 ppm/°C (Typical)

* Temperature Compensated for Operation Over Full Rated Operati

KA431SL General Description

The KA431S / KA431SA / KA431SL are three-terminal adjustable regulator series with a guaranteed thermal stability over the operating temperature range. The output voltage can be set to any value between VREF (approximately 2.5 V) and 36 V with two external resistors. These devices have a typical dyn.

KA431SL Datasheet (224.70 KB)

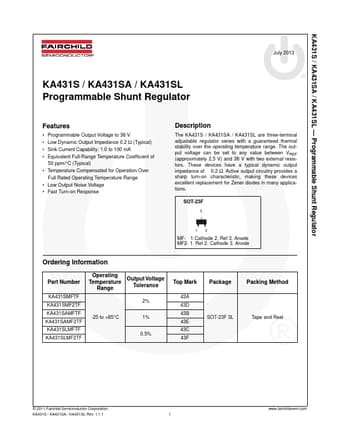

Preview of KA431SL PDF

Datasheet Details

Part number:

KA431SL

Manufacturer:

Fairchild

File Size:

224.70 KB

Description:

Programmable shunt regulator.
