KA431A

Programmable Shunt Regulator

Fairchild

KA431A Features

* Programmable Output Voltage to 36 V

* Low Dynamic Output Impedance: 0.2 Ω (Typical)

* Sink Current Capability: 1.0 to 100 mA

* Equivalent Full-Range Temperature Coefficient of 50 ppm/°C (Typical)

* Temperature Compensated for Operation Over Full Rated Operat

KA431A General Description

The KA431 / KA431A / KA431L are three-terminal adjustable regulators with a guaranteed thermal stability over the operating temperature range. The output voltage can be set to any value between VREF (approximately 2.5 V) and 36 V with two external resistors. These devices have a typical dynamic outp.

KA431A Datasheet (213.01 KB)

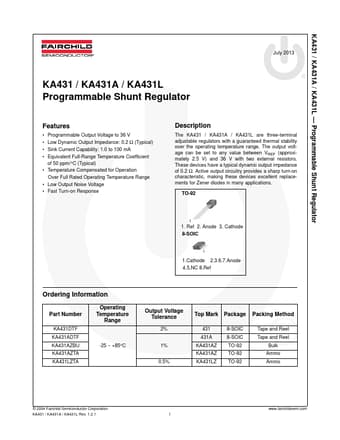

KA431A Datasheet Preview — Preview of KA431A PDF

Datasheet Details

Part number:

KA431A

Manufacturer:

Fairchild

File Size:

213.01 KB

Description:

Programmable shunt regulator.
