KA431SA, Programmable Shunt Regulator

KA431S / KA431SA / KA431SL * Programmable Shunt Regulator July 2013 KA431S / KA431SA / KA431SL Programmable Shunt Regulator .
The KA431S / KA431SA / KA431SL are three-terminal adjustable regulator series with a guaranteed thermal stability over the operating temperature range.

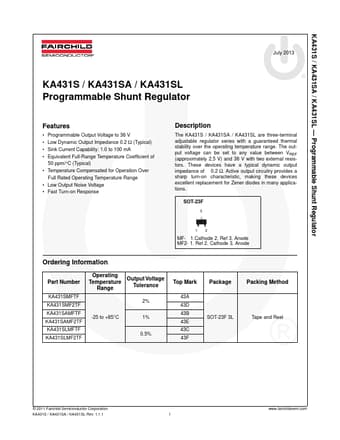

datasheet Preview Page 1 from Datasheet4u.com

KA431SA_FairchildSemiconductor.pdf

KA431SA Datasheet Preview — Preview of KA431SA PDF

Datasheet Details

Part number:

KA431SA

Manufacturer:

Fairchild

File Size:

224.70 KB

Description:

Programmable Shunt Regulator

Features

* Programmable Output Voltage to 36 V
* Low Dynamic Output Impedance 0.2 Ω (Typical)
* Sink Current Capability: 1.0 to 100 mA
* Equivalent Full-Range Temperature Coefficient of 50 ppm/°C (Typical)
* Temperature Compensated for Operation Over Full Rated Operati

Applications

* SOT-23F 3 12 MF- 1.Cathode 2. Ref 3. Anode MF2- 1. Ref 2. Cathode 3. Anode Ordering Information Part Number KA431SMFTF KA431SMF2TF KA431SAMFTF KA431SAMF2TF KA431SLMFTF KA431SLMF2TF Operating Temperature Range -25 to +85°C Output Voltage Tolerance 2% 1% 0.5% Top Mark 43A 43D 43B 43E 43C 43F P
