NC7SZ175

TinyLogic UHS D-Type Flip-Flop

NC7SZ175 Features

* s Space saving SC70 6-lead package s Ultra small MicroPak leadless package s Ultra High Speed; tPD 2.6 ns Typ into 50 pF at 5V VCC s High Output Drive; ±24 mA at 3V VCC s Broad VCC Operating Range; 1.65V to 5.5V s Matches the performance of LCX when operated at 3.3V VCC s Power down high impedance

NC7SZ175 General Description

The NC7SZ175 is a single positive edge-triggered D-type CMOS Flip-Flop with Asynchronous Clear from Fairchild’s Ultra High Speed Series of TinyLogic in the space saving SC70 6-lead package. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive whi.

NC7SZ175 Datasheet (105.69 KB)

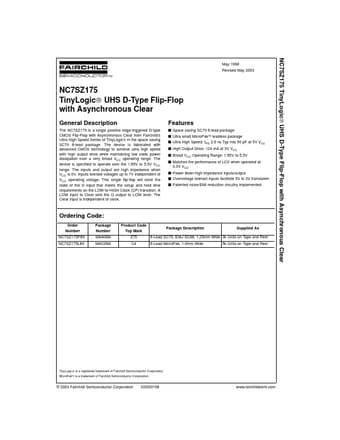

Preview of NC7SZ175 PDF

Datasheet Details

Part number:

NC7SZ175

Manufacturer:

Fairchild

File Size:

105.69 KB

Description:

Tinylogic uhs d-type flip-flop.
NC7SZ175 TinyLogic UHS D-Type Flip-Flop with Asynchronous Clear May 1998 Revised May 2003 NC7SZ175 TinyLogic UHS D-Type Flip-Flop with Asynchronou.
