NDH8321C Datasheet - Fairchild

Dual N&P-Channel MOSFET

NDH8321C Features

* N-Ch 3.8 A, 20 V, RDS(ON)=0.035 Ω @ VGS= 4.5 V RDS(ON)=0.045 Ω @ VGS=2.7 V P-Ch -2.7 A, -20V, RDS(ON)=0.07Ω @ VGS= -4.5 V RDS(ON)=0.095 Ω @ VGS= -2.7 V. Proprietary SuperSOTTM-8 package design using copper lead frame for superior thermal and electrical capabilities. High density cell design for extr

NDH8321C General Description

These dual N- and P -Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices.

NDH8321C Datasheet (251.27 KB)

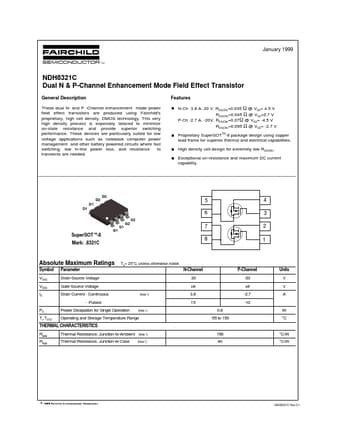

NDH8321C Datasheet Preview — Preview of NDH8321C PDF

Datasheet Details

Part number:

NDH8321C

Manufacturer:

Fairchild

File Size:

251.27 KB

Description:

Dual n&p-channel mosfet.
