NDP6020P Datasheet P-channel Logic Level Enhancement Mode Field Effect Transistor

Manufacturer: Fairchild (now onsemi)

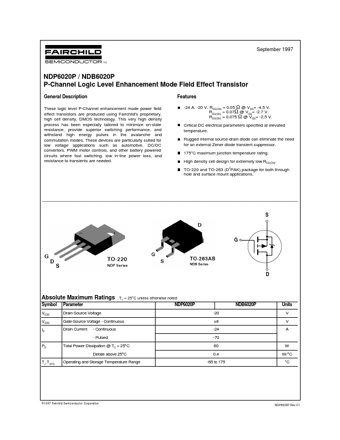

Overview: September 1997 NDP6020P / NDB6020P P-Channel Logic Level Enhancement Mode Field Effect.

General Description

These logic level P-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

This very high density process has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulses in the avalanche and commutation modes.

These devices are particularly suited for low voltage applications such as automotive, DC/DC converters, PWM motor controls, and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.

Key Features

  • -24 A, -20 V. RDS(ON) = 0.05 Ω @ VGS= -4.5 V. RDS(ON) = 0.07Ω @ VGS= -2.7 V. RDS(ON) = 0.075 Ω @ VGS= -2.5 V. Critical DC electrical parameters specified at elevated temperature. Rugged internal source-drain diode can eliminate the need for an external Zener diode transient suppressor. 175°C maximum junction temperature rating. High density cell design for extremely low RDS(ON). TO-220 and TO-263 (D2PAK) package for both through hole and surface mount.
