FP6715 550KHz High Efficiency Low Ripple Synchronous Step-Up Converter

FP6715 Description

fitipower integrated technology lnc.FP6715 5V, 2.5A, 550KHz High Efficiency Low Ripp8l5eT Synchronous Step-Up Converter .
The FP6715 is a high efficiency, fixed frequency 550KHz, current mode PWM boost DC/DC converter which could operate battery such as input voltage down.

FP6715 Features

* High Efficiency up to 93%
* Low RDS(ON) Integrated Power MOSFET
* NMOS 80mΩ / PMOS120mΩ
* Wide Input Voltage Range: 2.5V to 5.5V
* Fixed 550KHz Switching Frequency
* Low-Power Mode for Light Load Conditions
* ±2.0% Voltage Reference Accuracy
* PMOS Current Limit for

FP6715 Applications

* Portable Power Bank
* Wireless Equipment
* Handheld Instrument
* GPS Receiver Pin Assignments S6 Package (SOT-23-6) VIN OUT EN 654 (Marking) 123 LX GND FB Figure 1. Pin Assignment of FP6715 Ordering Information FP6715
* TR: Tape/Reel C: Green Package Type

📥 Download Datasheet

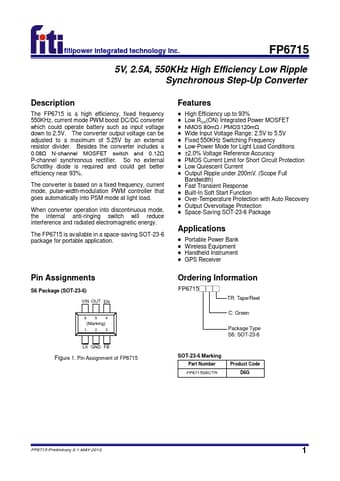

Preview of FP6715 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP6715
Manufacturer
Fiti
File Size
366.25 KB
Datasheet
FP6715-Fiti.pdf
Description
550KHz High Efficiency Low Ripple Synchronous Step-Up Converter
