FP6714

1-Cell and 2-Cell Boost Converter

FP6714 Features

* Synchronous Rectification: 94% Efficiency Very Low Start-up Voltage at 0.85V Automatically Switch to PSM Mode for Improving Efficiency at Light Load Internal Anti-Ringing Switch Across Inductor Fixed Frequency Operation at 1.0MHz Very Low Shutdown Current at 1µA Small SOT-23-6 Package RoHS Compliant

FP6714 General Description

SOT-23-6 1 2 3 4 5 6 DESCRIPTION Switch input Ground Chip-enable input. Feedback input Output voltage Input voltage TYPICAL APPLICATION Handheld Instrument Cordless Phone Wireless Handset GPS Receiver MP3 PACKAGE SOT-23-6 、、 .

FP6714 Datasheet (134.20 KB)

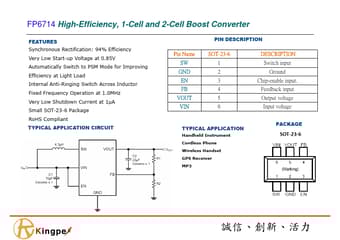

Preview of FP6714 PDF

Datasheet Details

Part number:

FP6714

Manufacturer:

Fiti

File Size:

134.20 KB

Description:

1-cell and 2-cell boost converter.
