FP6716

550KHz High Efficiency Low Ripple Synchronous Step-Up Converter

Fiti

FP6716 Features

* High Efficiency up to 90%

* Low RDS(ON) Integrated Power MOSFET

* NMOS 50mΩ/PMOS 80mΩ

* Wide Input Voltage Range: 2.5V to 5.5V

* Fixed 550KHz Switching Frequency

* Low-Power Mode for Light Load Conditions

* ±2.0% Voltage Reference Accuracy

* Adjustable Current Limit

FP6716 General Description

The FP6716 is a high efficiency, fixed frequency 550KHz, current mode PWM boost DC/DC converter which could operate battery such as input voltage down to 2.5V. The converter output voltage can be adjusted to a maximum of 5.25V by an external resistor divider. Besides the converter includes a 0.05Ω N.

FP6716 Datasheet (591.81 KB)

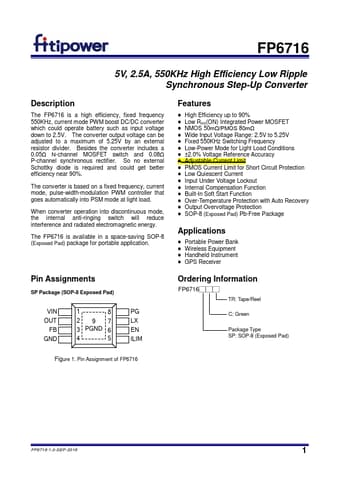

FP6716 Datasheet Preview — Preview of FP6716 PDF

Datasheet Details

Part number:

FP6716

Manufacturer:

Fiti

File Size:

591.81 KB

Description:

550khz high efficiency low ripple synchronous step-up converter.
