MB151 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS

Formosa MS

📥 Download Datasheet

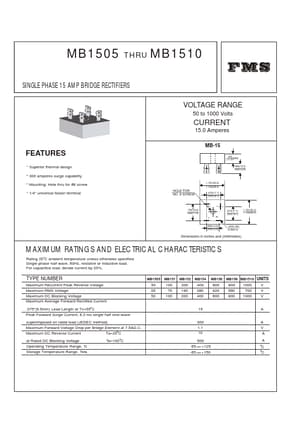

MB151 Datasheet Preview — Preview of MB151 PDF

datasheet Preview Page 2

Datasheet Details

Part number	MB151
Manufacturer	Formosa MS
File Size	41.55 KB
Description	SINGLE PHASE 15 AMP BRIDGE RECTIFIERS
Datasheet	MB151_FormosaMS.pdf

MB151 Product details

Features

Superior thermal design.
300 amperes surge capability.
Mounting: Hole thru for #8 screw.
1/4" universal faston terminal HOLE FOR NO. 8 SCREW 1.181(30.0) 1.102(28.0) .673(17.1) .633(16.1) .452 MAX. (11.5) .480(12.2) .425(10.8) AC + .673(17.1) .633(16.1) AC .732(18.6) .692(17.6) 1.181(30.0) 1.102(28.0) .582(14.8) .543(13.8) .033X.250 (0.8X6.4) Dimensions in inches and (millimeters).
