FS3332 - Two Cell Lithium-ion/Polymer Battery Protection

Product Overview

Fortune

📥 Download Datasheet

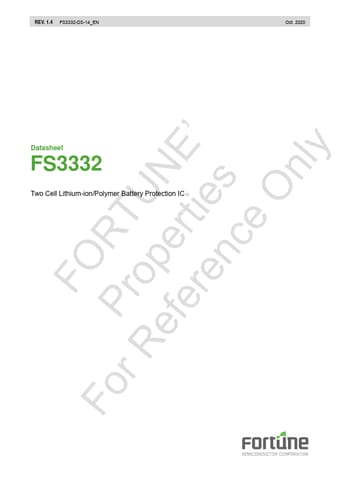

FS3332 Two Cell Lithium-ion/Polymer Battery Protection by Fortune - Datasheet Preview — Datasheet preview – FS3332

Datasheet Details

Part number	FS3332
Manufacturer	Fortune
File Size	1.17 MB
Description	Two Cell Lithium-ion/Polymer Battery Protection
Datasheet	FS3332 Datasheet
Additional preview pages of the FS3332 datasheet.

Product details

Description

The FS3332 Series are protection ICs for 2-serial-cell lithium-ion/lithium-polymer rechargeable batteries and include high-accuracy voltage detectors and delay circuits.

Features

Low supply current.
Normal Operation : 7.5μ A typ. 14.2μ A max. Power-down mode : 0.3μ A typ.
Overcharge detection voltage ﹝VOCU﹞ 3.90V~4.60V, Accuracy of 25mV.
Overcharge release voltage ﹝VOCR﹞ 3.60V~4.60V, Accuracy of 50mV.
Over-discharge detection voltage ﹝VODL﹞ 1.70V~2.60V, Accuracy of 80mV.
Over-discharge release voltage ﹝VODR﹞ 1.70V~3.80V, Accuracy of 100mV.
Over current detection voltage ﹝VOI1﹞ 0.07V~0.30V, Accuracy of 20mV.
Shor.
