Part number:
2SK2687-01
Manufacturer:
Fuji Electric
File Size:
225.00 KB
Description:
N-channel mos-fet.
2SK2687-01 Datasheet (225.00 KB)

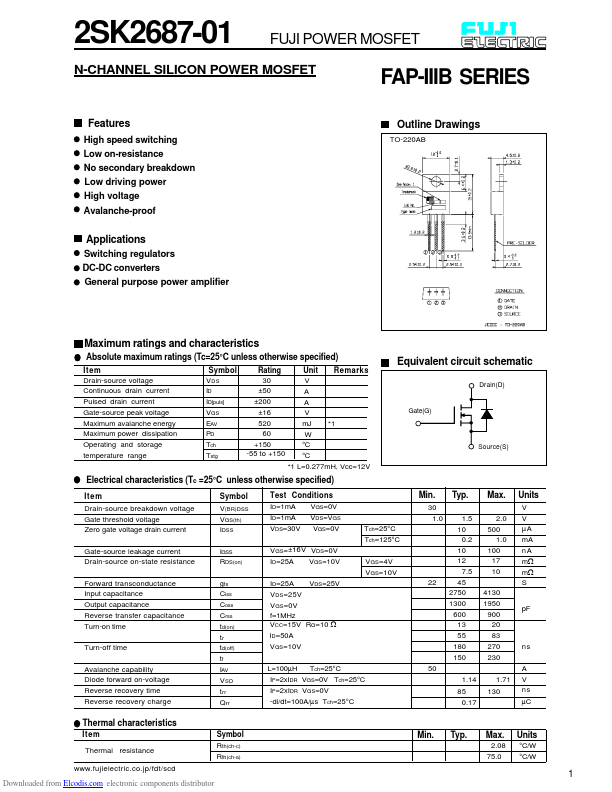

* High Current Low On-Resistance No Secondary Breakdown Low Driving Power Avalanche Rated N-channel MOS-FET 30V 0,01Ω ±50A 60W > Outline Drawing > Applications - Motor Control - General Purpose Power Amplifier - DC-DC converters > Maximum Ratings and Characteristics - Absolute Maximum Ratings (T
2SK2687-01 Datasheet (225.00 KB)
2SK2687-01
Fuji Electric
225.00 KB
N-channel mos-fet.
