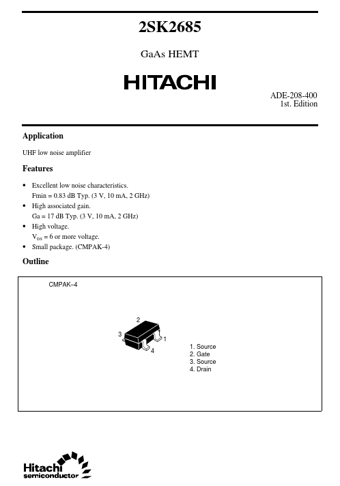

Part number:
2SK2685
Manufacturer:
Hitachi Semiconductor
File Size:
49.79 KB
Description:
Gaas hemt.
* Excellent low noise characteristics. Fmin = 0.83 dB Typ. (3 V, 10 mA, 2 GHz)
* High associated gain. Ga = 17 dB Typ. (3 V, 10 mA, 2 GHz)
* High voltage. VDS = 6 or more voltage.
* Small package. (CMPAK-4) Outline CMPAK
* 4 2 3 4 1 1. Source 2. Gate 3. Source
2SK2685
Hitachi Semiconductor
49.79 KB
Gaas hemt.
