MB85RC128 - 128 K (16 K x 8) Bit I2C

Name: MB85RC128
SKU: MB85RC128-703244

Fujitsu

📥 Download Datasheet

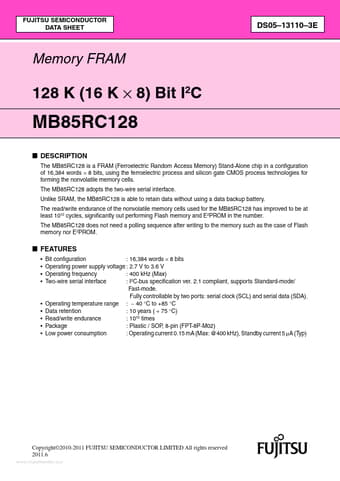

MB85RC128 Datasheet Preview — Preview of MB85RC128 PDF

Datasheet Details

Part number	MB85RC128
Manufacturer	Fujitsu
File Size	173.48 KB
Description	128 K (16 K x 8) Bit I2C
Datasheet	MB85RC128_Fujitsu.pdf

MB85RC128 Product details

Description

The MB85RC128 is a FRAM (Ferroelectric Random Access Memory) Stand-Alone chip in a configuration of 16,384 words × 8 bits, using the ferroelectric process and silicon gate CMOS process technologies for forming the nonvolatile memory cells.

Features

Bit configuration : 16,384 words × 8 bits Operating power supply voltage : 2.7 V to 3.6 V Operating frequency : 400 kHz (Max) Two-wire serial interface : I2C-bus specification ver. 2.1 compliant, supports Standard-mode/ Fast-mode. Fully controllable by two ports: serial clock (SCL) and serial data (SDA). Operating temperature range :.
40 °C to +85 °C Data retention : 10 years ( + 75 °C) Read/write endurance : 1010 times Package : Plastic / SOP, 8-.
