MB85RC64A - 64K-Bit I2C Memory FRAM

Name: MB85RC64A
SKU: MB85RC64A-1103697

Fujitsu

📥 Download Datasheet

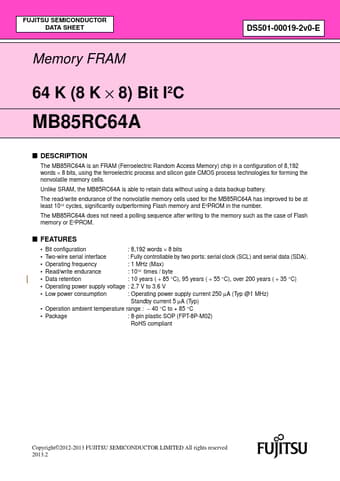

MB85RC64A Datasheet Preview — Preview of MB85RC64A PDF

Datasheet Details

Part number	MB85RC64A
Manufacturer	Fujitsu
File Size	279.95 KB
Description	64K-Bit I2C Memory FRAM
Datasheet	MB85RC64A-Fujitsu.pdf

MB85RC64A Product details

Description

The MB85RC64A is an FRAM (Ferroelectric Random Access Memory) chip in a configuration of 8,192 words × 8 bits, using the ferroelectric process and silicon gate CMOS process technologies for forming the nonvolatile memory cells.

Features

Bit configuration : 8,192 words × 8 bits.
Two-wire serial interface : Fully controllable by two ports: serial clock (SCL) and serial data (SDA).
Operating frequency : 1 MHz (Max).
Read/write endurance : 1012 times / byte.
Data retention : 10 years ( + 85 °C), 95 years ( + 55 °C), over 200 years ( + 35 °C).
Operating power supply voltage : 2.7 V to 3.6 V.
Low power consumption : Operating power supply current 250 μA (Ty.
